Manual Series M5

High professional powefull tool with build in unique transmission of power allows effortless setting of large size blind rivet nuts and bolds with retched-key especially design for operation in small areas.

Manual Series M5
Stroke Setup

Stroke Setup

The innovated stroke setup forms an integral part of the standard tool equipment. This allows, in combination with the quick interchangeable system, an easy and quick manual resize of the tool to a required diameter.

Easy Installation of Nut Rivets

The Manual series riveters can be used in a series production due to new unique design of their mechanism which enables riveting with application of the minimum force and lever lenght and allows a reduction of the tool weight while maintaining its high quality and durability.

Easy Installation of Nut Rivets

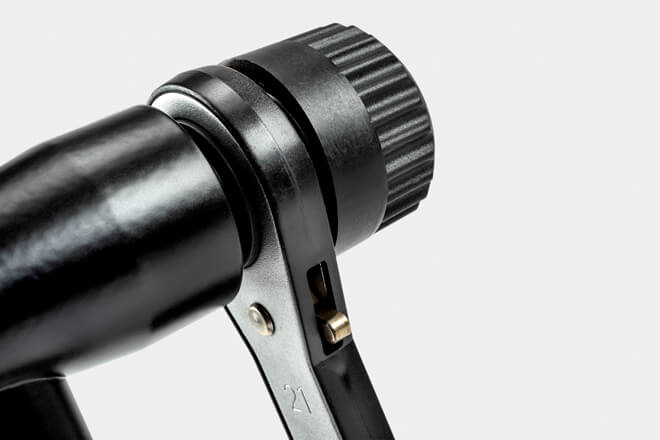

Adjustment of the Lever Opening Angle

Quick Interchangable System

Manual series nut riveters are equipped with the newly developed quick interchangable system designed in respect to an easy exchange of mandrels without using any additional tools directly at the workplace and consequently to a substantial time saving.

Ergonomy and Design

Manual series riveters are distinguished by the timeless design of Professor Pavel Škarka and sophisticated ergonomy, which allows their easy set up and use in demanding condition of series production.

Ergonomy and Design

Parametres

Capacity:
Blind rivet nuts: M3-M12, Blind rivet bolds: M4-M8
Weight:
1,25kg
Length:
212mm
Body material:
Steel
Lever material:
Steel
Equipment:
Conversion kit blind rivet nuts: M6-M12
